28080 Explosion-Proof Axial Fan
28080 Explosion-Proof Axial Fan — compact 280 × 280 × 80mm industrial cooling fan.

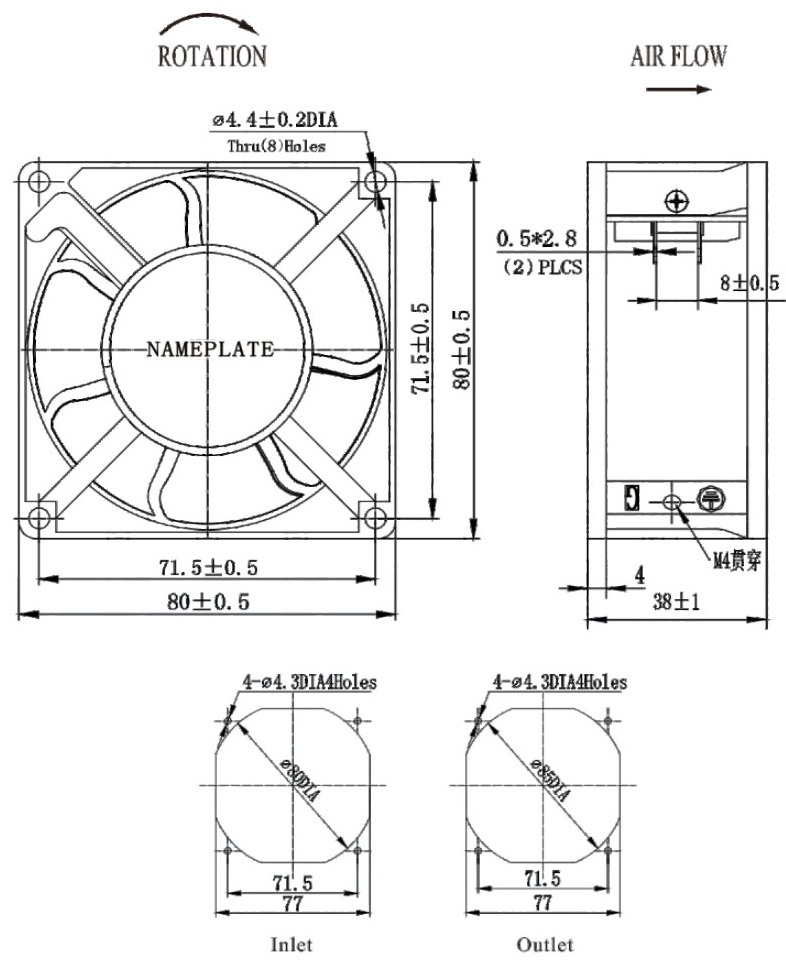

Source dimensional drawing for the Series 2 series.

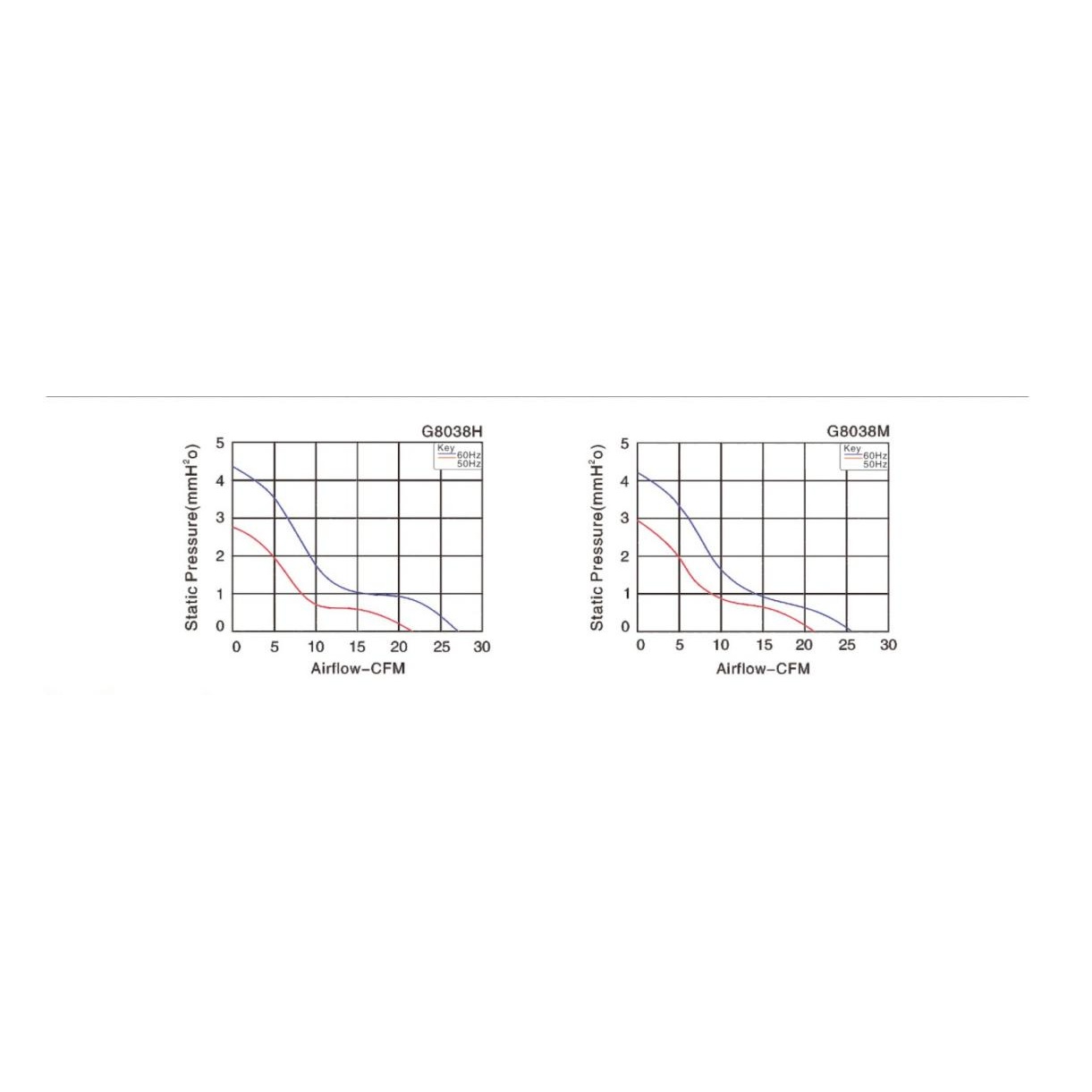

Source performance curve for the Series 2 series.

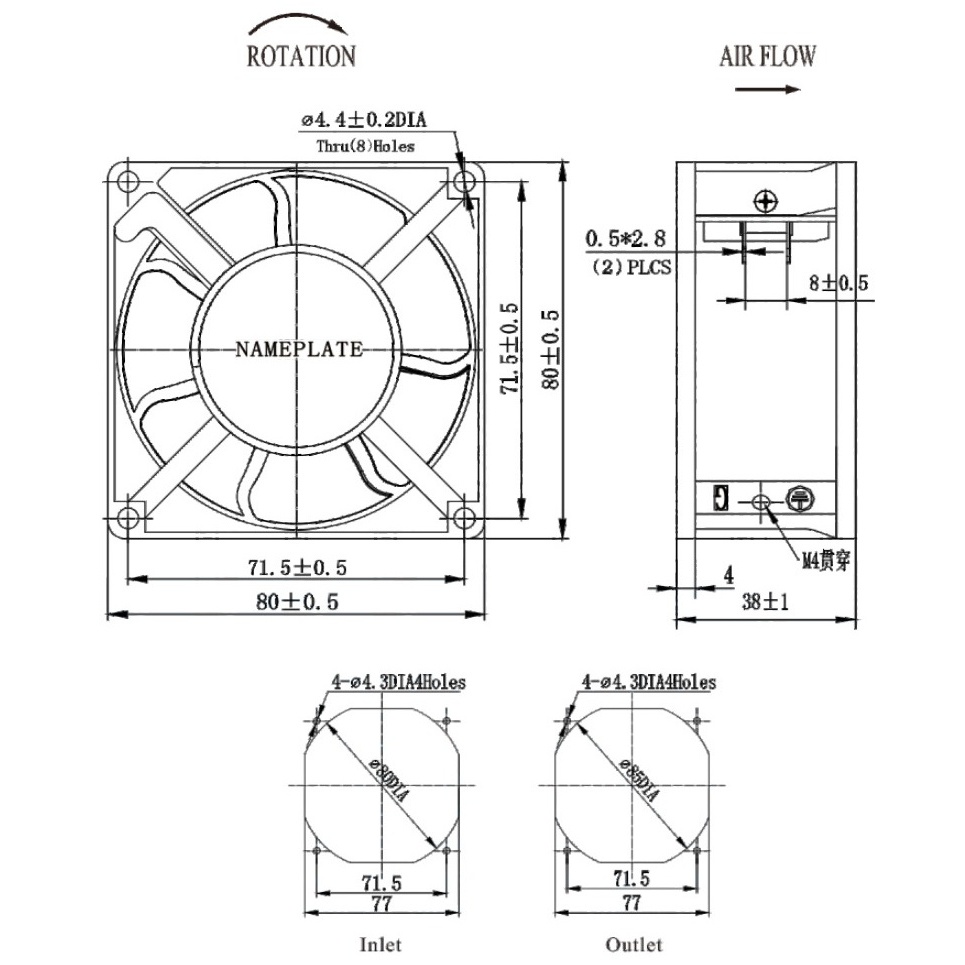

Engineering dimensional drawing for the Series 2 series, showing mounting dimensions and airflow direction.

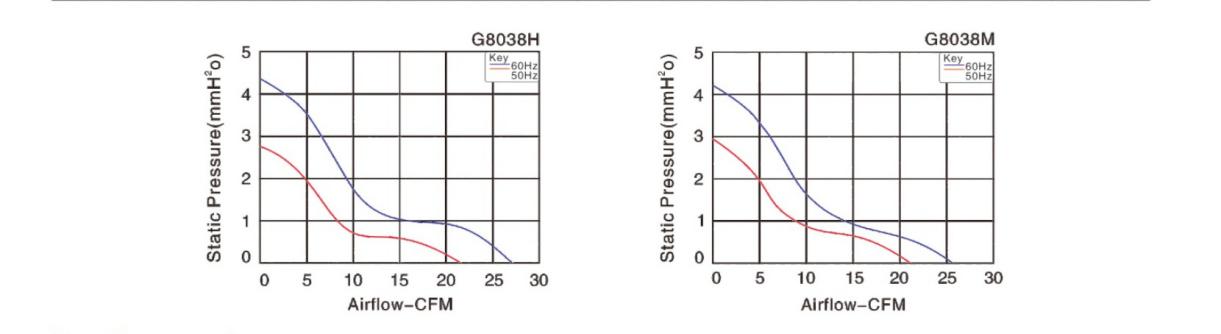

Static pressure vs. airflow performance curve for the Series 2 series under standard operating conditions.
Engineering dimensional drawing for the Series 2 series, showing mounting dimensions and airflow direction.
Static pressure vs. airflow performance curve for the Series 2 series under standard operating conditions.
Engineering dimensional drawing for the Series 2 series, showing mounting dimensions and airflow direction.
Static pressure vs. airflow performance curve for the Series 2 series under standard operating conditions.
Engineering dimensional drawing for the Series 2 series, showing mounting dimensions and airflow direction.
Static pressure vs. airflow performance curve for the Series 2 series under standard operating conditions.
Engineering dimensional drawing for the Series 2 series, showing mounting dimensions and airflow direction.
Static pressure vs. airflow performance curve for the Series 2 series under standard operating conditions.
Engineering dimensional drawing for the Series 2 series, showing mounting dimensions and airflow direction.
Static pressure vs. airflow performance curve for the Series 2 series under standard operating conditions.
| Size | 80mm×80mm×38mm |
|---|---|
| Airflow | 22-28CFM |
| Noise | 26-32dB(A) |
| Impeller Material | PBT UL94-V0 Reinforced Plastic |
| Frame | Aluminum Alloy |
| Terminals | 0.5mm |
| Lead Wire | AWG#22 UL1569(Optional) |
| Motor | Shaded Pole Induction Motor |
| Operating Temperature | -10℃~+65℃ |
| Model | Bearing | Voltage VAC | Freq. Hz | Current A | Power W | Speed RPM | Noise dB(A) | Air Flow CFM | Phase | Capacitor µF/VAC |
|---|---|---|---|---|---|---|---|---|---|---|
| G8038HA₁S | Sleeve | 100/125 | 50/60 | 0.18/0.13 | 15/10 | 2550/3100 | 28/32 | 23/28 | 1 | — |
| G8038HA₂S | Sleeve | 200/240 | 50/60 | 0.08/0.06 | 12/10 | 2550/3100 | 28/32 | 23/28 | 1 | — |
| G8038HA₁B | Ball | 100/125 | 50/60 | 0.18/0.13 | 15/10 | 2550/3100 | 28/32 | 23/28 | 1 | — |
| G8038HA₂B | Ball | 200/240 | 50/60 | 0.08/0.06 | 12/10 | 2550/3100 | 28/32 | 23/28 | 1 | — |
| G8038MA₁S | Sleeve | 100/125 | 50/60 | 0.13 | 9/7 | 2300/2700 | 26/30 | 2226 | 1 | — |
| G8038MAzS | Sleeve | 200/240 | 50/60 | 0.065 | 776 | 2300/2700 | 26/30 | 22/26 | 1 | — |
| G8038MA₁B | Ball | 100/125 | 50/60 | 0.13 | 9/7 | 2300/2700 | 26/30 | 2226 | 1 | — |
| G8038MA₂B | Ball | 200/240 | 50/60 | 0.065 | 76 | 2300/2700 | 26/30 | 22/26 | 1 | — |
