28080 Explosion-Proof Axial Fan
28080 Explosion-Proof Axial Fan — compact 280 × 280 × 80mm industrial cooling fan.
Source dimensional drawing for the Series 1 series.
Source performance curve for the Series 1 series.

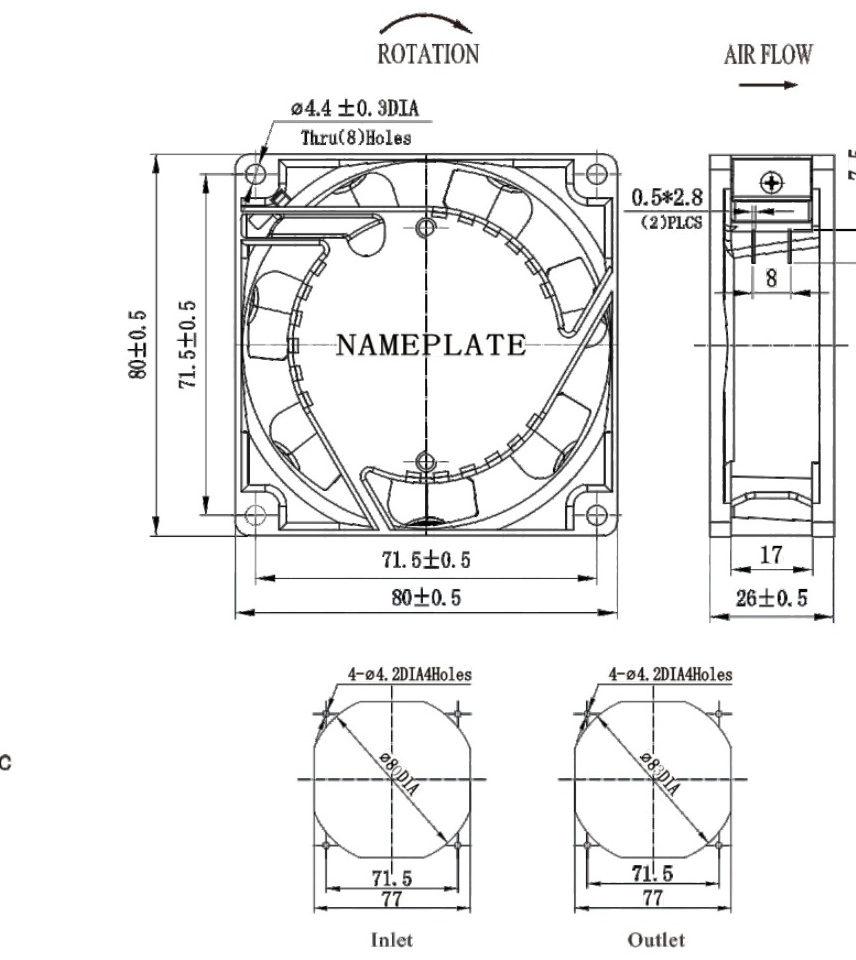

Engineering dimensional drawing for the Series 1 series, showing mounting dimensions and airflow direction.

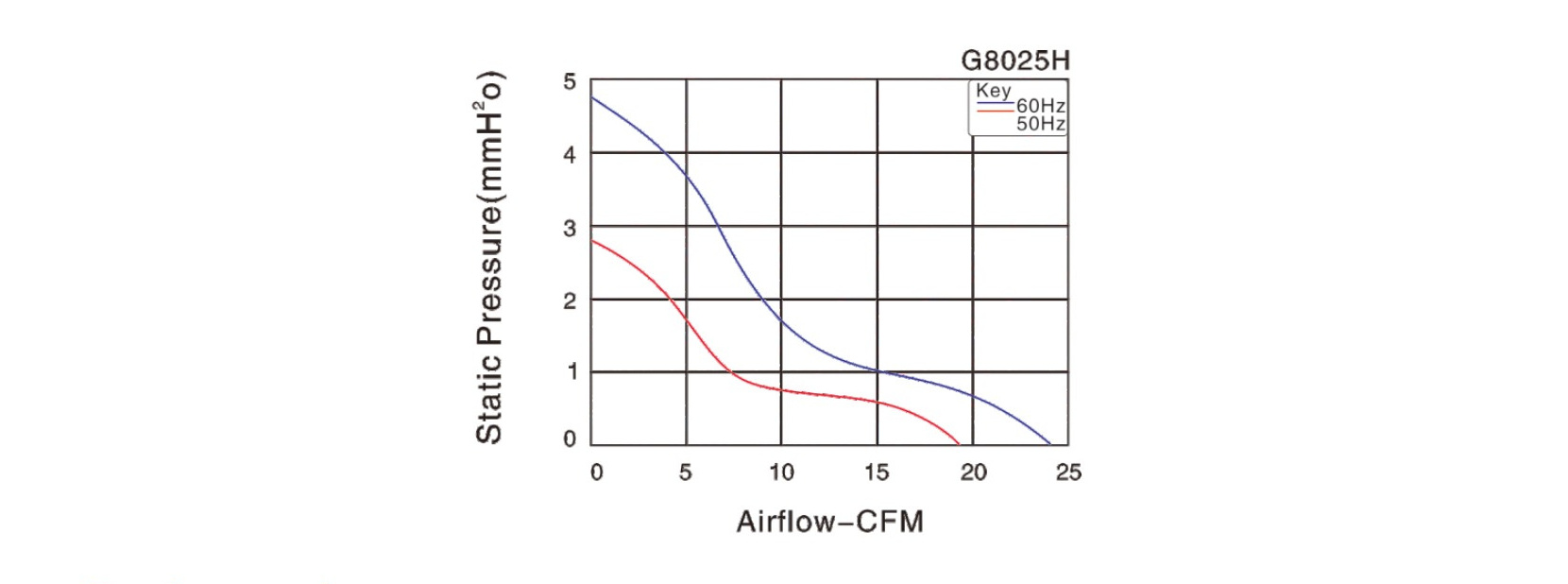

Static pressure vs. airflow performance curve for the Series 1 series under standard operating conditions.
Engineering dimensional drawing for the Series 1 series, showing mounting dimensions and airflow direction.
Static pressure vs. airflow performance curve for the Series 1 series under standard operating conditions.
Engineering dimensional drawing for the Series 1 series, showing mounting dimensions and airflow direction.
Static pressure vs. airflow performance curve for the Series 1 series under standard operating conditions.
Engineering dimensional drawing for the Series 1 series, showing mounting dimensions and airflow direction.
Static pressure vs. airflow performance curve for the Series 1 series under standard operating conditions.
Engineering dimensional drawing for the Series 1 series, showing mounting dimensions and airflow direction.
Static pressure vs. airflow performance curve for the Series 1 series under standard operating conditions.
Engineering dimensional drawing for the Series 1 series, showing mounting dimensions and airflow direction.
Static pressure vs. airflow performance curve for the Series 1 series under standard operating conditions.

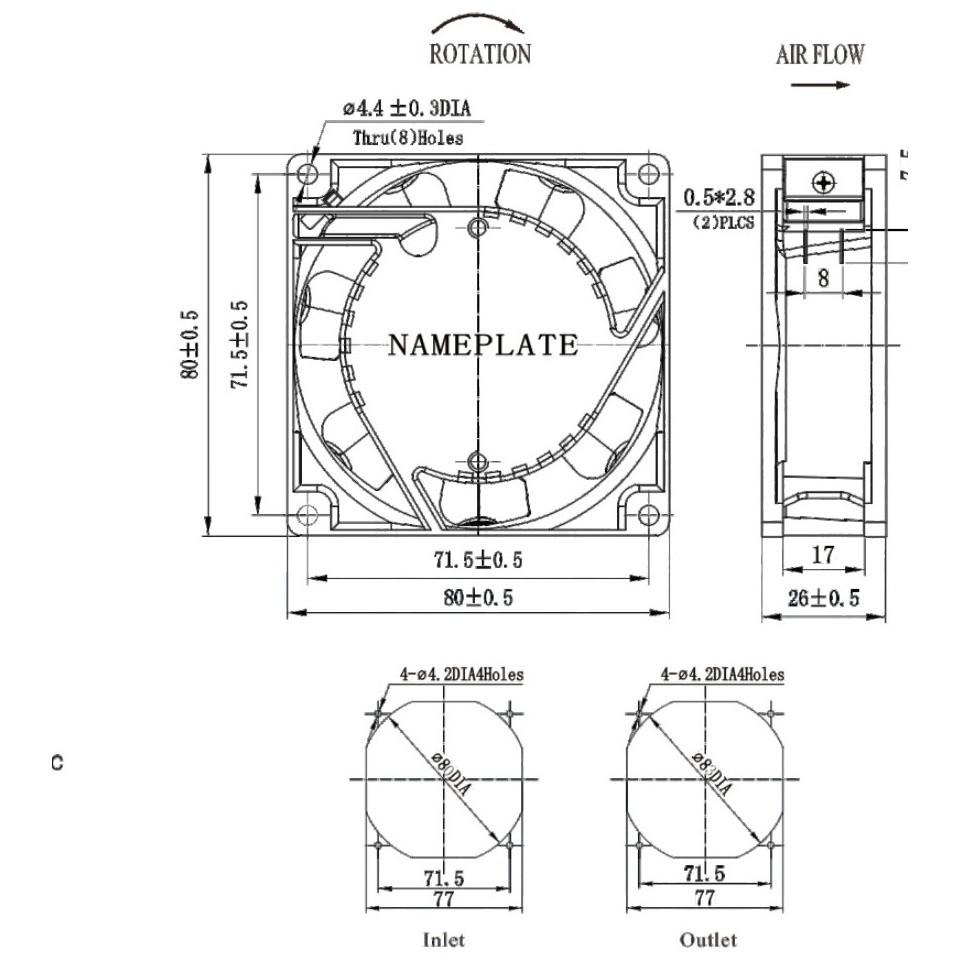

Engineering dimensional drawing.

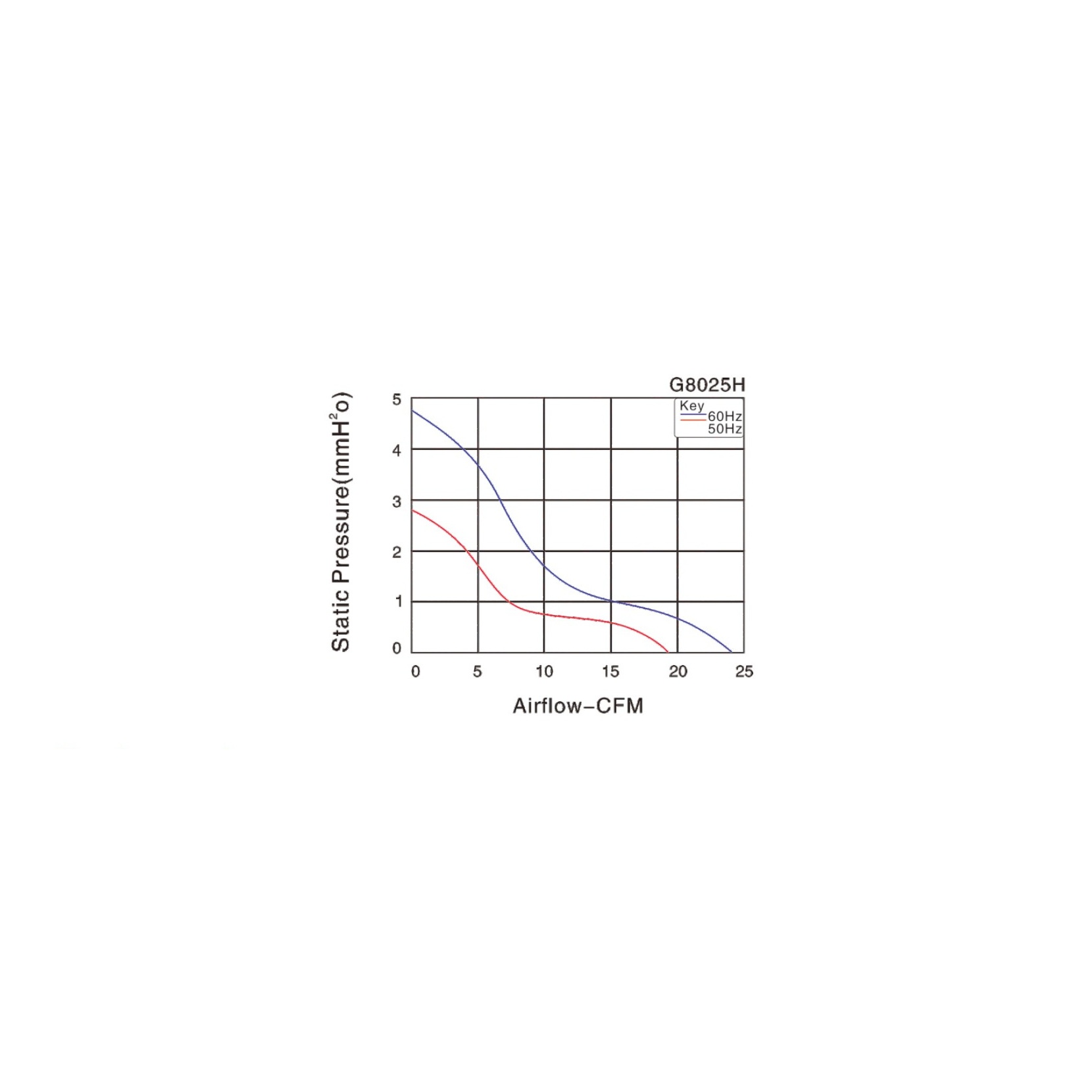

Static pressure vs. airflow curve.
| Size | 80mm×80mm×25mm |
|---|---|
| Airflow | 19-23CFM |
| Noise | 23-26dB(A) |
| Impeller Material | PBT UL94-V0 Reinforced Plastic |
| Frame | Aluminum Alloy |
| Terminals | 0.5mm |
| Lead Wire | AWG#22 UL1569(Optional) |
| Motor | Shaded Pole Induction Motor |
| Operating Temperature | -10℃~+65℃ |
| Model | Bearing | Voltage VAC | Freq. Hz | Current A | Power W | Speed RPM | Noise dB(A) | Air Flow CFM | Phase | Capacitor µF/VAC |
|---|---|---|---|---|---|---|---|---|---|---|
| G8025HA₁S | Sleeve | 100/125 | 50/60 | 0.2/0.16 | 15/12 | 2500/3000 | 26/23 | 19/23 | 1 | — |
| G8025HA-S | Sleeve | 200/240 | 50/60 | 0.11/0.09 | 15/12 | 2500/3000 | 26/23 | 19/23 | 1 | — |
| G8025HA₁B | Ball | 100/125 | 50/60 | 0.15 | 15/12 | 2300/2750 | 26/23 | 19/23 | 1 | — |
| G8025HA₂B | Ball | 200/240 | 50/60 | 0.09 | 15/12 | 2300/2750 | 26/23 | 19/23 | 1 | — |
