28080 Explosion-Proof Axial Fan
28080 Explosion-Proof Axial Fan — compact 280 × 280 × 80mm industrial cooling fan.
Source dimensional drawing for the Series 3 series.
Source performance curve for the Series 3 series.

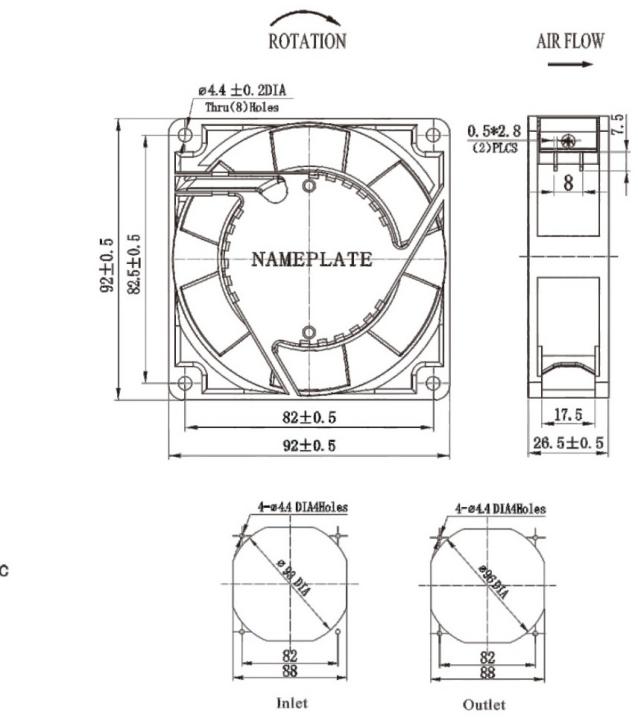

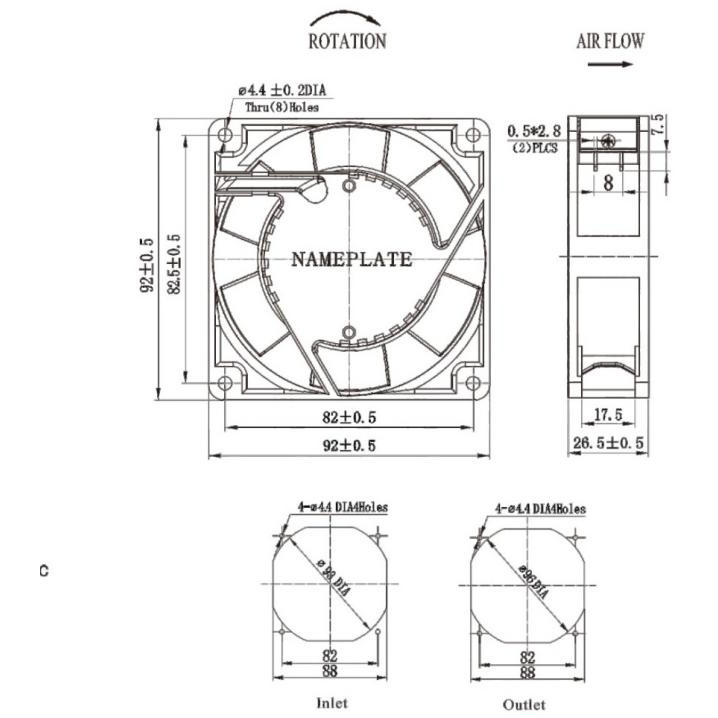

Engineering dimensional drawing for the Series 3 series, showing mounting dimensions and airflow direction.

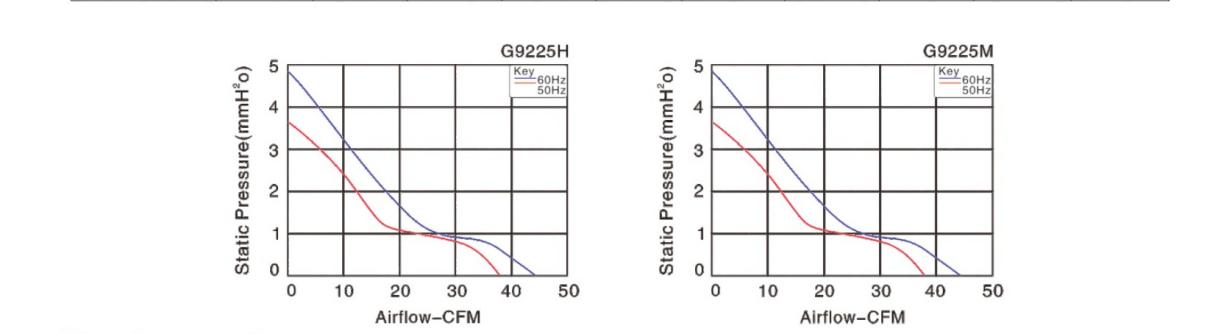

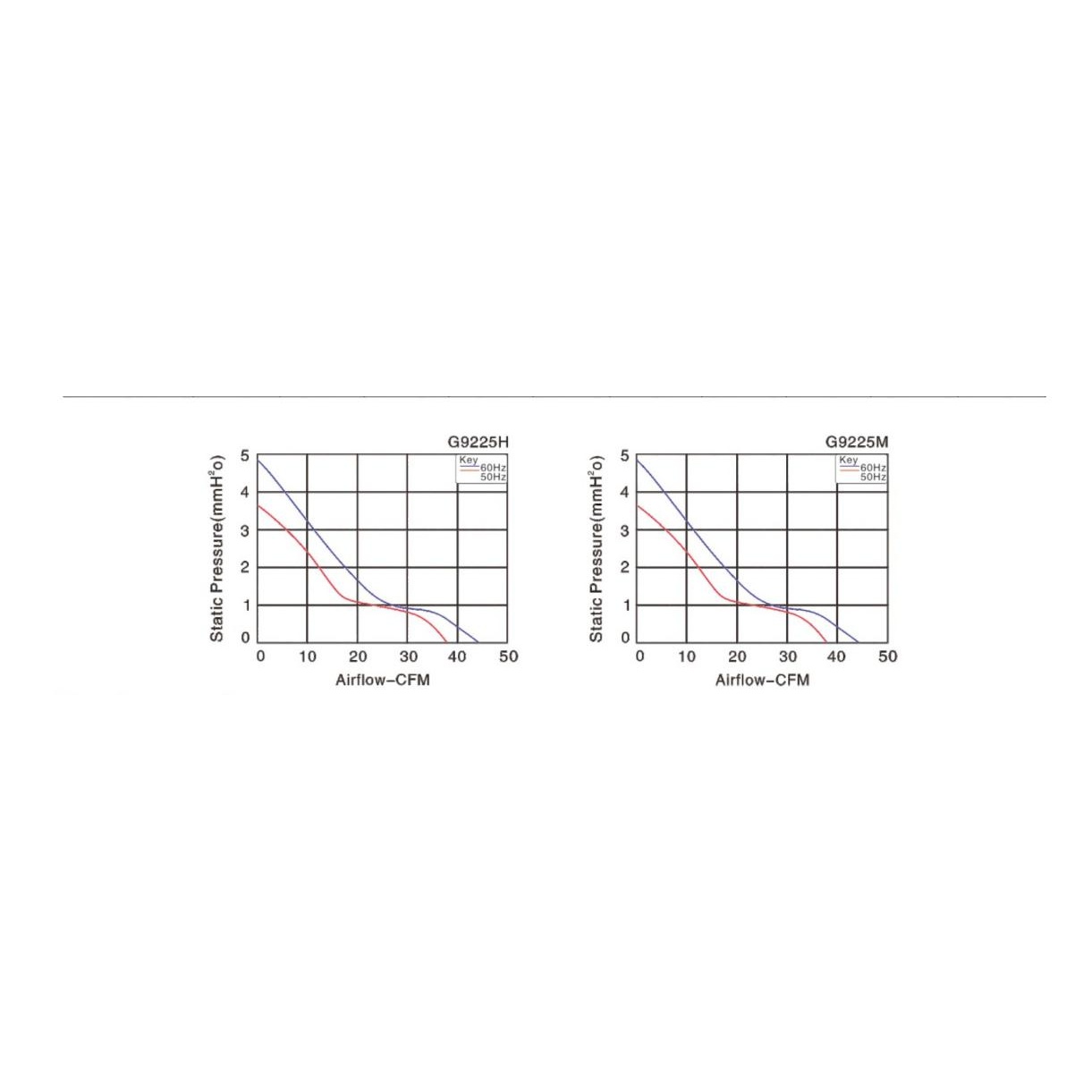

Static pressure vs. airflow performance curve for the Series 3 series under standard operating conditions.
Engineering dimensional drawing for the Series 3 series, showing mounting dimensions and airflow direction.
Static pressure vs. airflow performance curve for the Series 3 series under standard operating conditions.
Engineering dimensional drawing for the Series 3 series, showing mounting dimensions and airflow direction.
Static pressure vs. airflow performance curve for the Series 3 series under standard operating conditions.
Engineering dimensional drawing for the Series 3 series, showing mounting dimensions and airflow direction.
Static pressure vs. airflow performance curve for the Series 3 series under standard operating conditions.
Engineering dimensional drawing for the Series 3 series, showing mounting dimensions and airflow direction.
Static pressure vs. airflow performance curve for the Series 3 series under standard operating conditions.
Engineering dimensional drawing for the Series 3 series, showing mounting dimensions and airflow direction.
Static pressure vs. airflow performance curve for the Series 3 series under standard operating conditions.
| Size | 92mm×92mm×25mm |
|---|---|
| Airflow | 23-37CFM |
| Noise | 23-40dB(A) |
| Impeller Material | PBT UL94-V0 Reinforced Plastic |
| Frame | Aluminum Alloy |
| Terminals | 0.5mm |
| Lead Wire | AWG#22 UL1569(Optional) |
| Motor | Shaded Pole Induction Motor |
| Operating Temperature | -10℃~+65℃ |
| Model | Bearing | Voltage VAC | Freq. Hz | Current A | Power W | Speed RPM | Noise dB(A) | Air Flow CFM | Phase | Capacitor µF/VAC |
|---|---|---|---|---|---|---|---|---|---|---|
| G9225HA₁S | Sleeve | 100/125 | 50/60 | 0.2/0.16 | 16/13 | 2350/2800 | 34/40 | 30/37 | 1 | — |
| G9225HA₂S | Sleeve | 200/240 | 50/60 | 0.1/0.08 | 16/13 | 2350/2800 | 34/40 | 30/37 | 1 | — |
| G9225HA₁B | Ball | 100/125 | 50/60 | 0.2/0.16 | 13/11 | 2350/2800 | 34/40 | 30/37 | 1 | — |
| G9225HA₂B | Ball | 200/240 | 50/60 | 0.1/0.08 | 13/11 | 2350/2800 | 34/40 | 30/37 | 1 | — |
| G9225MA₁S | Sleeve | 100/125 | 50/60 | 0.14 | 776 | 1800/2300 | 23/30 | 23/30 | 1 | — |
| G9225MA₂S | Sleeve | 200/240 | 50/60 | 0.07 | 7/6 | 1800/2300 | 23/30 | 23/30 | 1 | — |
| G9225MA₁B | Ball | 100/125 | 50/60 | 0.14 | 776 | 1800/2300 | 23/30 | 23/30 | 1 | — |
| G9225MA₂B | Ball | 200/240 | 50/60 | 0.07 | 7/6 | 1800/2300 | 23/30 | 23/30 | 1 | — |
