28080 Explosion-Proof Axial Fan
28080 Explosion-Proof Axial Fan — compact 280 × 280 × 80mm industrial cooling fan.
Source dimensional drawing for the Series 6 series.
Source performance curve for the Series 6 series.

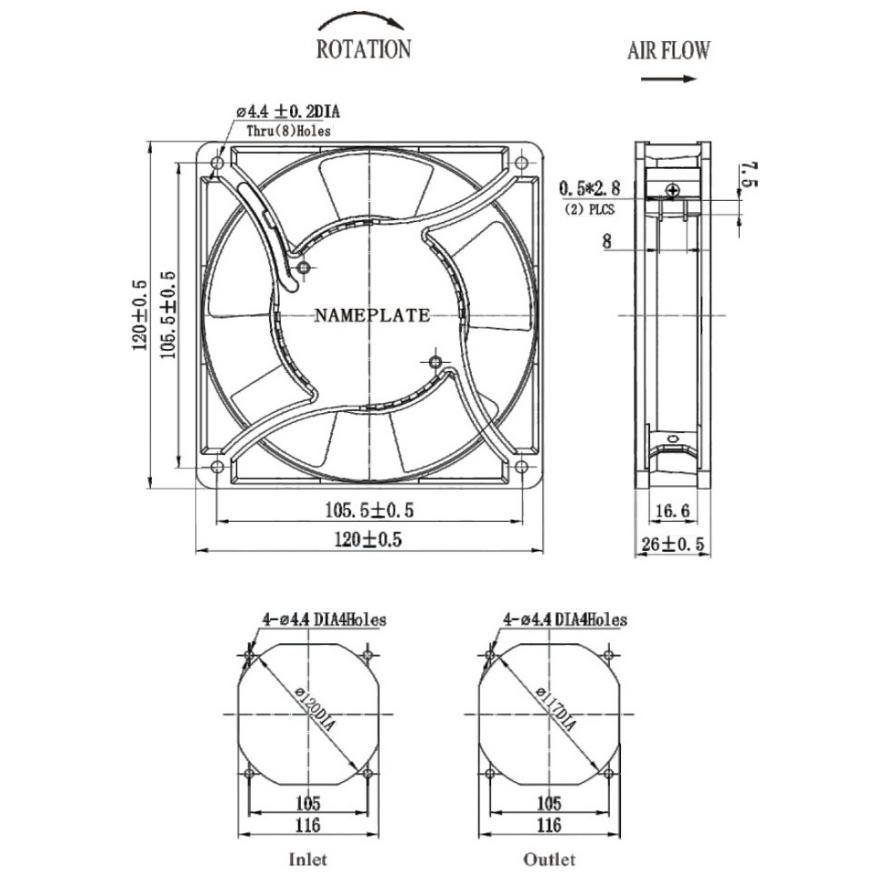

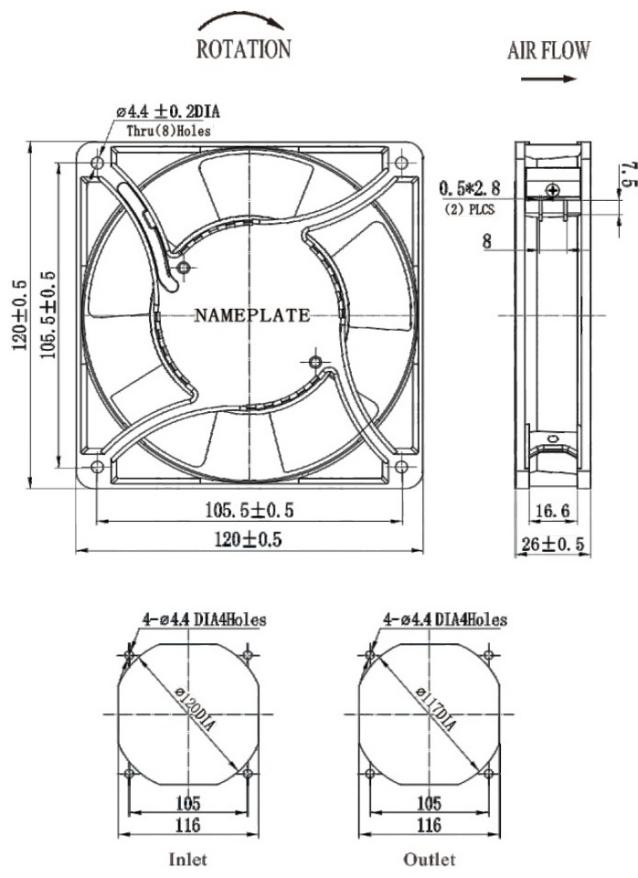

Engineering dimensional drawing for the Series 6 series, showing mounting dimensions and airflow direction.

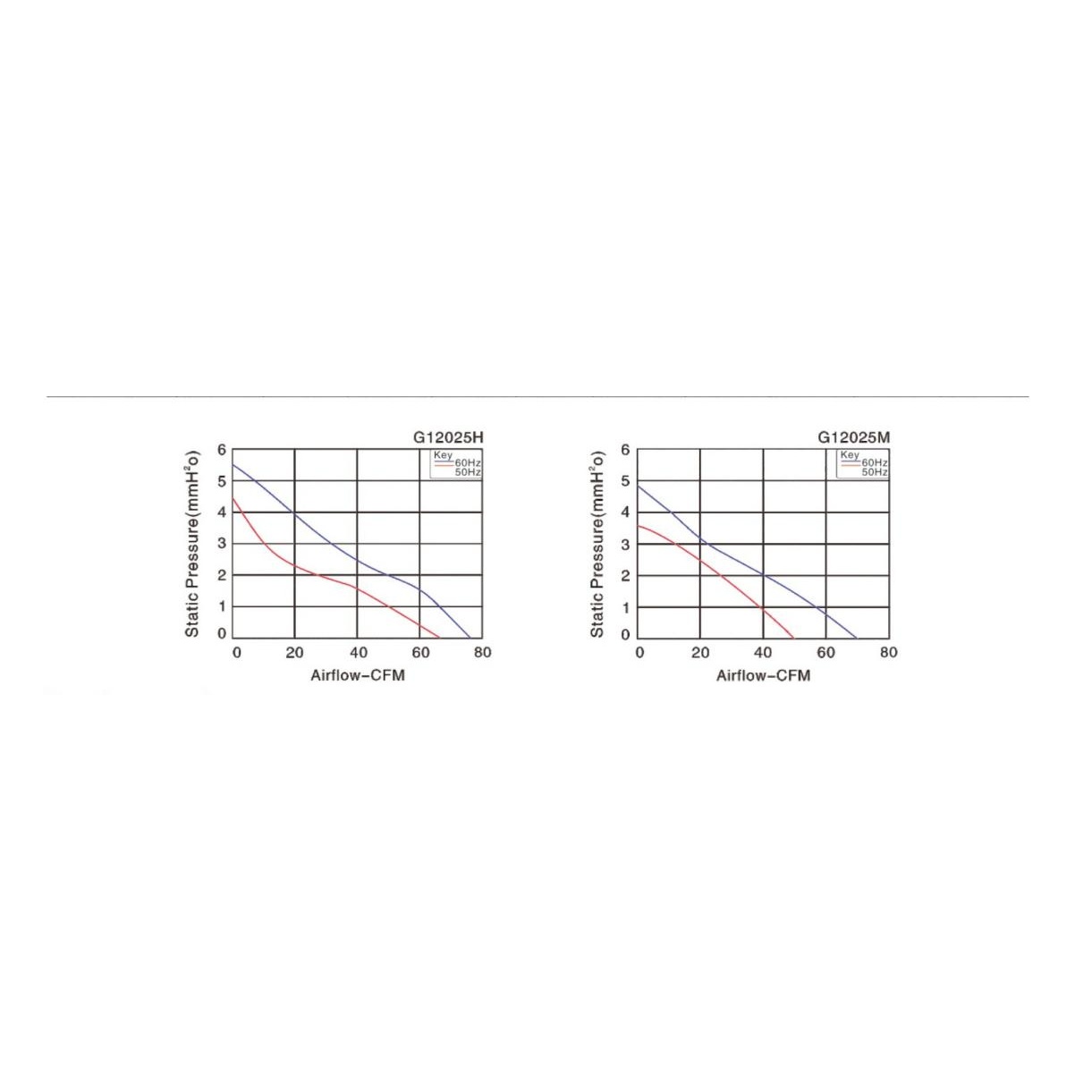

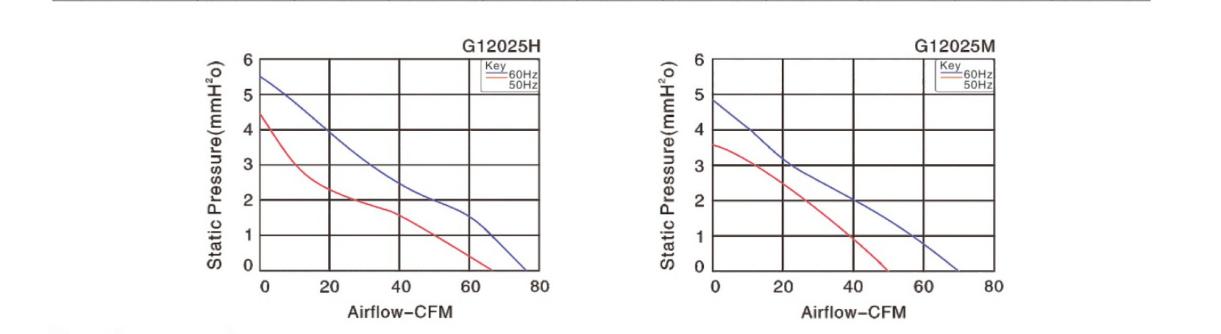

Static pressure vs. airflow performance curve for the Series 6 series under standard operating conditions.
Engineering dimensional drawing for the Series 6 series, showing mounting dimensions and airflow direction.
Static pressure vs. airflow performance curve for the Series 6 series under standard operating conditions.
Engineering dimensional drawing for the Series 6 series, showing mounting dimensions and airflow direction.
Static pressure vs. airflow performance curve for the Series 6 series under standard operating conditions.
Engineering dimensional drawing for the Series 6 series, showing mounting dimensions and airflow direction.
Static pressure vs. airflow performance curve for the Series 6 series under standard operating conditions.
Engineering dimensional drawing for the Series 6 series, showing mounting dimensions and airflow direction.
Static pressure vs. airflow performance curve for the Series 6 series under standard operating conditions.
Engineering dimensional drawing for the Series 6 series, showing mounting dimensions and airflow direction.
Static pressure vs. airflow performance curve for the Series 6 series under standard operating conditions.
| Size | 120mm×120mm×25mm |
|---|---|
| Airflow | 50-70CFM |
| Noise | 30-41dB(A) |
| Impeller Material | PBT UL94-V0 Reinforced Plastic |
| Frame | Aluminum Alloy |
| Terminals | 0.5mm |
| Lead Wire | AWG#22 UL1569(Optional) |
| Motor | Shaded Pole Induction Motor |
| Operating Temperature | -10℃~+65℃ |
| Model | Bearing | Voltage VAC | Freq. Hz | Current A | Power W | Speed RPM | Noise dB(A) | Air Flow CFM | Phase | Capacitor µF/VAC |
|---|---|---|---|---|---|---|---|---|---|---|
| G12025HA₁S | Sleeve | 100/125 | 50/60 | 0.30/0.28 | 28/26 | 2400/2700 | 38/41 | 66/78 | 1 | — |
| G12025HA₂S | Sleeve | 200/240 | 50/60 | 0.1/0.08 | 17/14 | 2400/2700 | 38/41 | 66/78 | 1 | — |
| G12025HA₁B | Ball | 100/125 | 50/60 | 0.30/0.28 | 28/26 | 2400/2700 | 38/41 | 66/78 | 1 | — |
| G12025HA₂B | Ball | 200/240 | 50/60 | 0.1/0.08 | 17/14 | 2400/2700 | 38/41 | 66/78 | 1 | — |
| G12025MA₁S | Sleeve | 100/125 | 50/60 | 0.16 | 16 | 1800/2300 | 30/38 | 50/66 | 1 | — |
| G12025MA₂S | Sleeve | 200/240 | 50/60 | 0.08 | 16 | 1800/2300 | 30/38 | 50/66 | 1 | — |
| G12025MA₁B | Ball | 100/125 | 50/60 | 0.16 | 16 | 1800/2300 | 30/38 | 50/66 | 1 | — |
| G12025MA₂B | Ball | 200/240 | 50/60 | 0.08 | 16 | 1800/2300 | 30/38 | 50/66 | 1 | — |
