28080 Explosion-Proof Axial Fan
28080 Explosion-Proof Axial Fan — compact 280 × 280 × 80mm industrial cooling fan.
Source dimensional drawing for the Series 7 series.
Source performance curve for the Series 7 series.

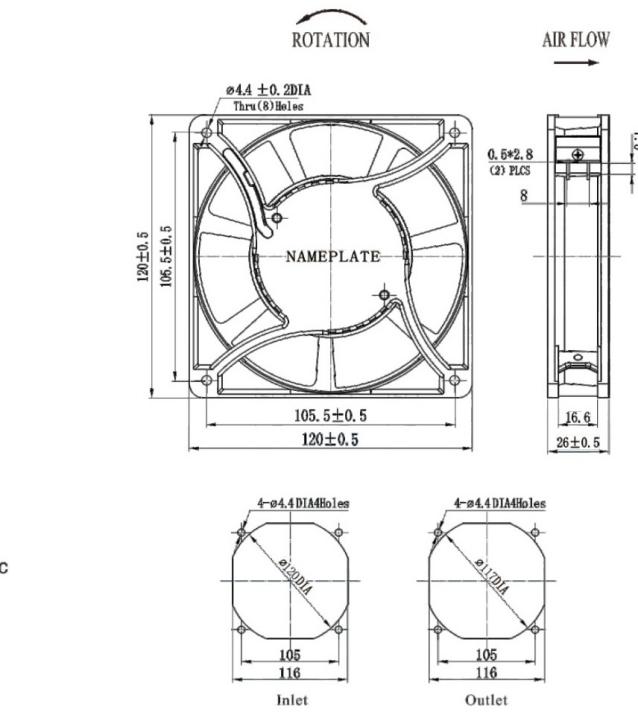

Engineering dimensional drawing for the Series 7 series, showing mounting dimensions and airflow direction.

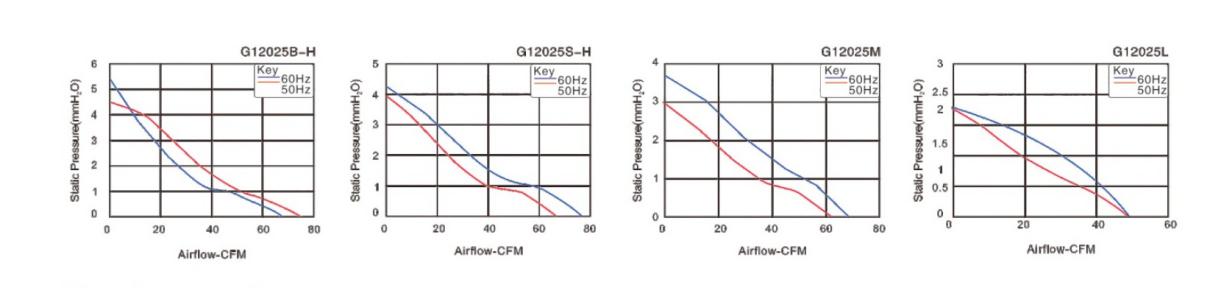

Static pressure vs. airflow performance curve for the Series 7 series under standard operating conditions.

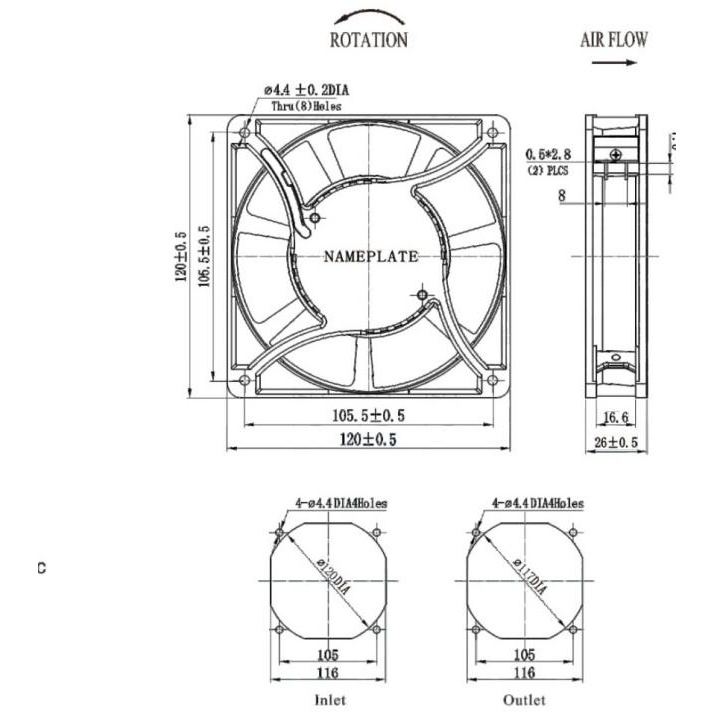

Engineering dimensional drawing for the Series 7 series, showing mounting dimensions and airflow direction.

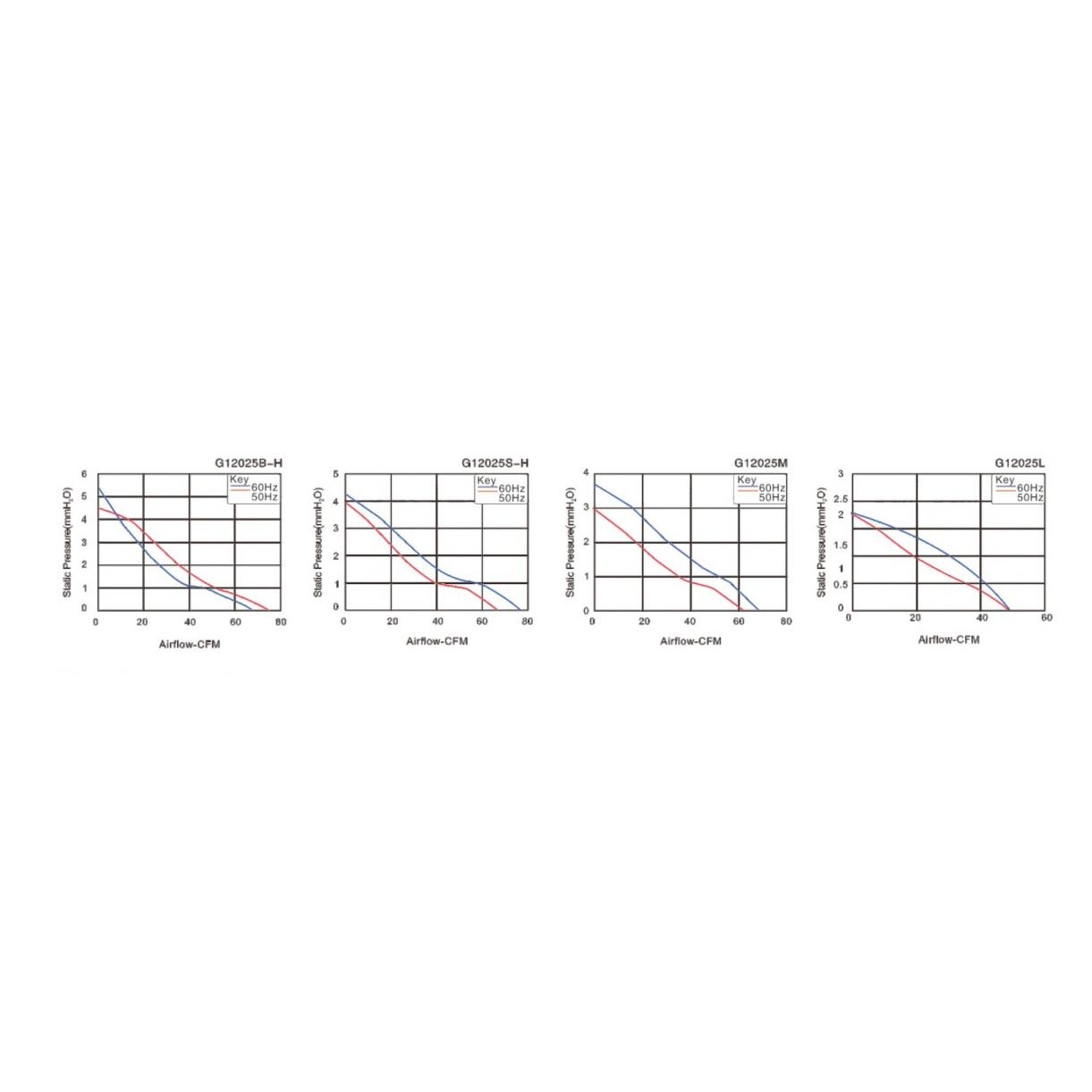

Static pressure vs. airflow performance curve for the Series 7 series under standard operating conditions.
Engineering dimensional drawing for the Series 7 series, showing mounting dimensions and airflow direction.
Static pressure vs. airflow performance curve for the Series 7 series under standard operating conditions.
Engineering dimensional drawing for the Series 7 series, showing mounting dimensions and airflow direction.
Static pressure vs. airflow performance curve for the Series 7 series under standard operating conditions.
Engineering dimensional drawing for the Series 7 series, showing mounting dimensions and airflow direction.
Static pressure vs. airflow performance curve for the Series 7 series under standard operating conditions.
Engineering dimensional drawing for the Series 7 series, showing mounting dimensions and airflow direction.
Static pressure vs. airflow performance curve for the Series 7 series under standard operating conditions.
| Size | 120mm×120mm×25mm |
|---|---|
| Airflow | 50-76CFM |
| Noise | 31-41dB(A) |
| Impeller Material | PBT UL94-V0 Reinforced Plastic |
| Frame | Aluminum Alloy |
| Terminals | 0.5mm |
| Lead Wire | AWG#22 UL1569(Optional) |
| Motor | Shaded Pole Induction Motor |
| Operating Temperature | -10℃~+65℃ |
| Model | Bearing | Voltage VAC | Freq. Hz | Current A | Power W | Speed RPM | Noise dB(A) | Air Flow CFM | Phase | Capacitor µF/VAC |
|---|---|---|---|---|---|---|---|---|---|---|
| G12025HA₁S-7P | Sleeve | 100/125 | 50/60 | 0.32/0.28 | 26/32 | 2350/2650 | 34/39 | 59/68 | 1 | — |
| G12025HA₂S-7P | Sleeve | 200/240 | 50/60 | 0.07 | 14/13 | 2350/2650 | 34/39 | 59/68 | 1 | — |
| G12025HA₁B-7P | Ball | 100/125 | 50/60 | 0.32/0.28 | 26/32 | 2450/2700 | 39/41 | 68/76 | 1 | — |
| G12025HA₂B-7P | Ball | 200/240 | 50/60 | 0.07 | 14/13 | 2450/2700 | 39/41 | 68/76 | 1 | — |
| G12025MA₁S-7P | Sleeve | 100/125 | 50/60 | 0.13 | 11/10 | 2000/2200 | 33/34 | 55/65 | 1 | — |
| G12025MA₂S-7P | Sleeve | 200/240 | 50/60 | 0.06 | 11/10 | 2000/2200 | 33/34 | 55/65 | 1 | — |
| G12025MA₁B-7P | Ball | 100/125 | 50/60 | 0.13 | 11/10 | 2000/2200 | 33/34 | 55/65 | 1 | — |
| G12025MA₂B-7P | Ball | 200/240 | 50/60 | 0.06 | 11/10 | 2000/2200 | 33/34 | 55/65 | 1 | — |
| G12025LA₁S-7P | Sleeve | 100/125 | 50/60 | 0.09 | 9/8 | 1800/1800 | 31/31 | 50/50 | 1 | — |
| G12025LA₂S-7P | Sleeve | 200/240 | 50/60 | 0.05 | 9/8 | 1800/1800 | 31/31 | 50/50 | 1 | — |
| G12025LA₁B-7P | Sleeve | 100/125 | 50/60 | 0.09 | 9/8 | 1800/1800 | 31/31 | 50/50 | 1 | — |
