G9238H SERIES

Series 4 AC Axial Fan, features a compact 92mm×92mm×38mm design, with a durable Aluminum Alloy frame, and PBT UL94-V0 Reinforced Plastic impeller, powered by a Shaded Pole Induction Motor. Engineered for reliable airflow performance, it is ideal for OEM and industrial applications requiring consistent cooling.

Size: 92mm×92mm×38mm
Airflow: 38-46CFM
Noise: 26-31dB(A)
Frame: Aluminum Alloy
Impeller Material: PBT UL94-V0 Reinforced Plastic
Motor: Shaded Pole Induction Motor
Operating Temperature: -10℃~+65℃
Terminals: 0.5 mm

Chat Now Message Email

Product details

Parameters

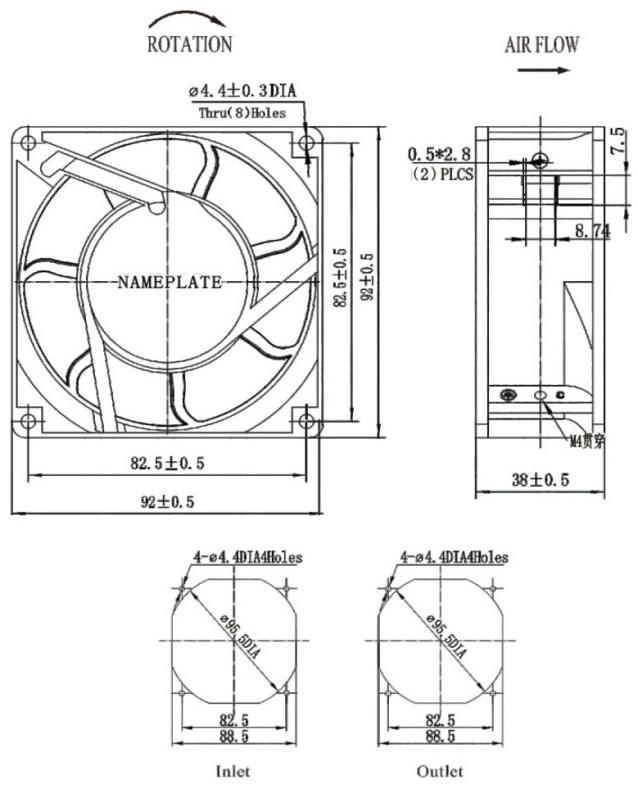

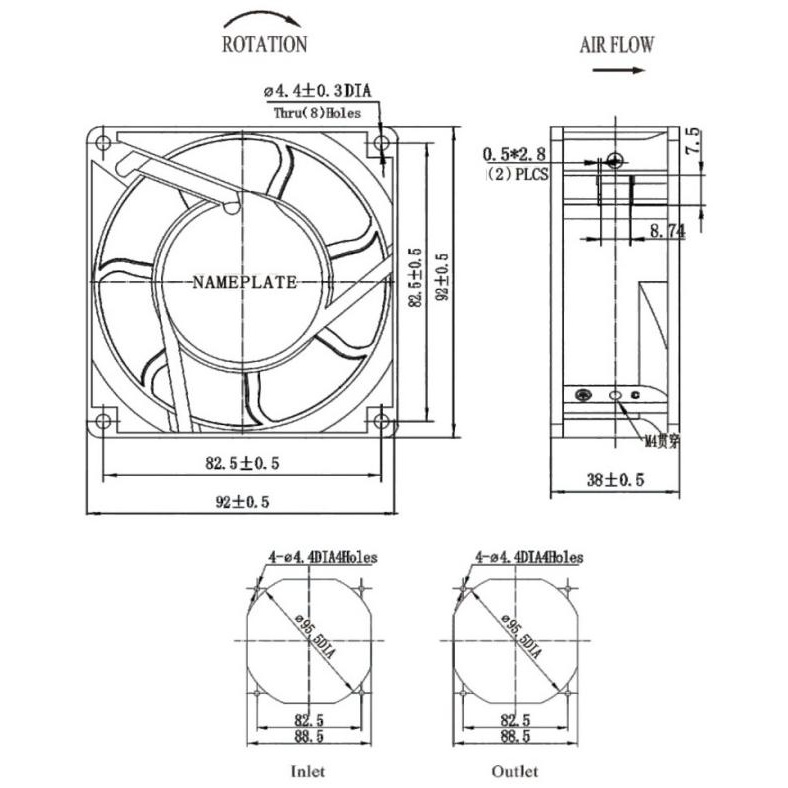

Dimensions and construction

Source dimensional drawing for the Series 4 series.

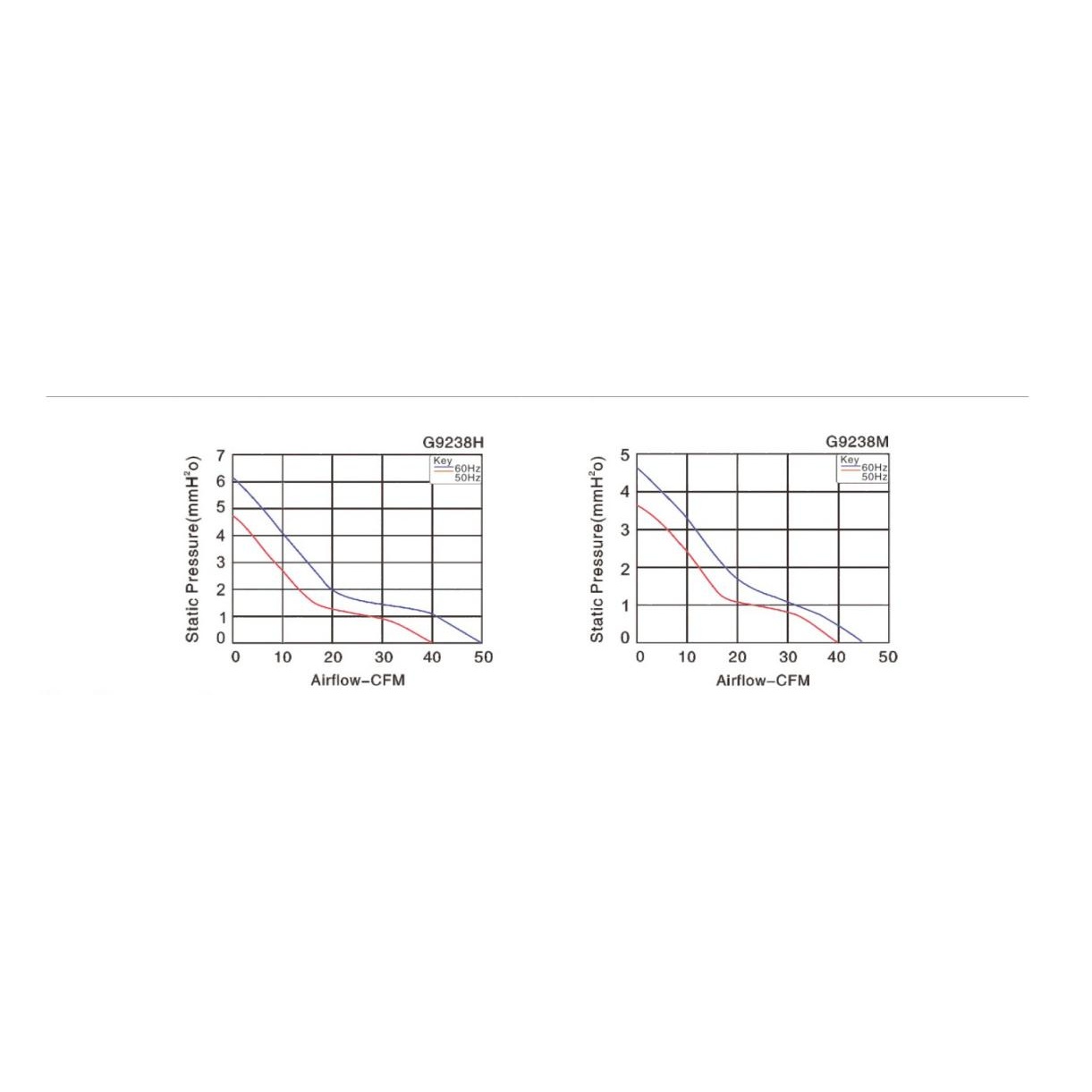

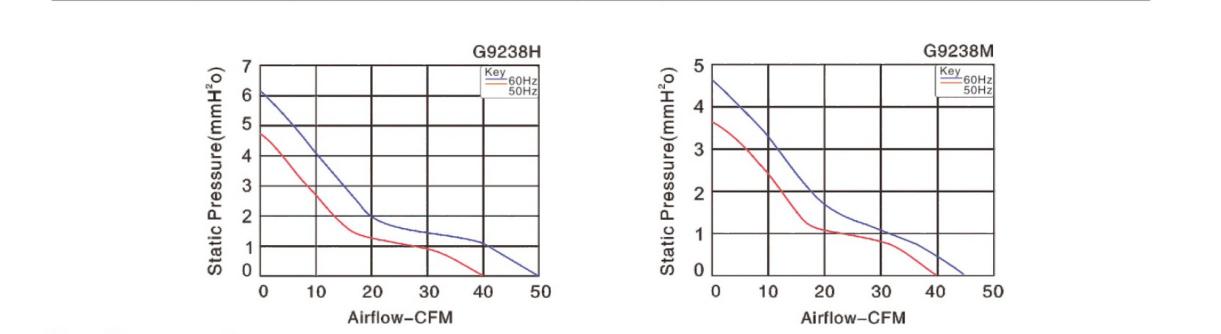

Performance curve

Source performance curve for the Series 4 series.

Series 4 technical parameters

Product description

Size	92mm×92mm×38mm
Airflow	38-46CFM
Noise	26-31dB(A)
Impeller Material	PBT UL94-V0 Reinforced Plastic
Frame	Aluminum Alloy
Terminals	0.5 mm
Lead Wire	AWG#22 UL1569(Optional)
Motor	Shaded Pole Induction Motor
Operating Temperature	-10℃~+65℃

Model specifications

Model	Bearing	Voltage VAC	Freq. Hz	Current A	Power W	Speed RPM	Noise dB(A)	Air Flow CFM	Phase	Capacitor µF/VAC
G9238HA₁S	Sleeve	100/125	50/60	0.23/0.18	17/13	2350/2750	26/31	39/46	1	—
G9238HA₂S	Sleeve	200/240	50/60	0.08/0.06	10/8	2350/2750	26/31	39/46	1	—
G9238HA₁B	Ball	100/125	50/60	0.23/0.18	17/13	2350/2750	26/31	39/46	1	—
G9238HA₂B	Ball	200/240	50/60	0.08/0.06	10/8	2350/2750	26/31	39/46	1	—
G9238MA₁S	Sleeve	100/125	50/60	0.12/0.09	9/7	2250/2600	26/28	38/44	1	—
G9238MA₂S	Sleeve	200/240	50/60	0.07/0.06	11/8	2250/2600	26/28	38/44	1	—
G9238MA₁B	Ball	100/125	50/60	0.12/0.09	9/7	2250/2600	26/28	38/44	1	—
G9238MA₂B	Ball	200/240	50/60	0.07/0.06	11/8	2250/2600	26/28	38/44	1	—
