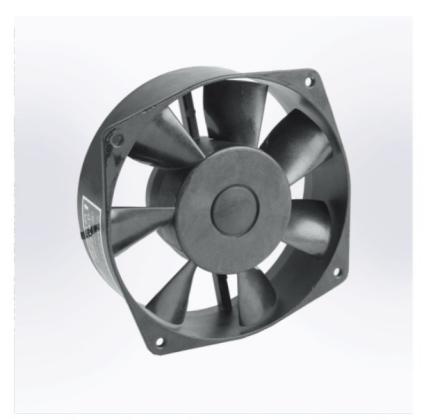

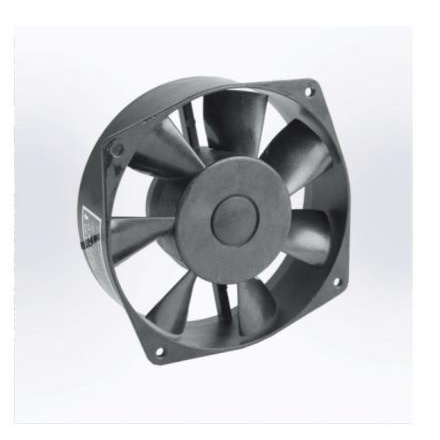

Series 26 AC Axial Fan

Series 26 AC Axial Fan, features a compact 158 mm × 158 mm × 50 mm design, with a durable Aluminum Alloy frame, and PBT UL94-V0 Reinforced Plastic impeller, powered by a Capacitor-Run Induction Motor. Engineered for reliable airflow performance, it is ideal for OEM and industrial applications requiring consistent cooling.
  • Size: 158 mm × 158 mm × 50 mm
  • Airflow: 240-270 CFM
  • Noise: 58-60 dB(A)
  • Frame: Aluminum Alloy
  • Impeller Material: PBT UL94-V0 Reinforced Plastic
  • Motor: Capacitor-Run Induction Motor
  • Operating Temperature: -10℃~+65℃
  • Terminals: 0.5 mm
Chat Now Message Email
Product details
Parameters
6

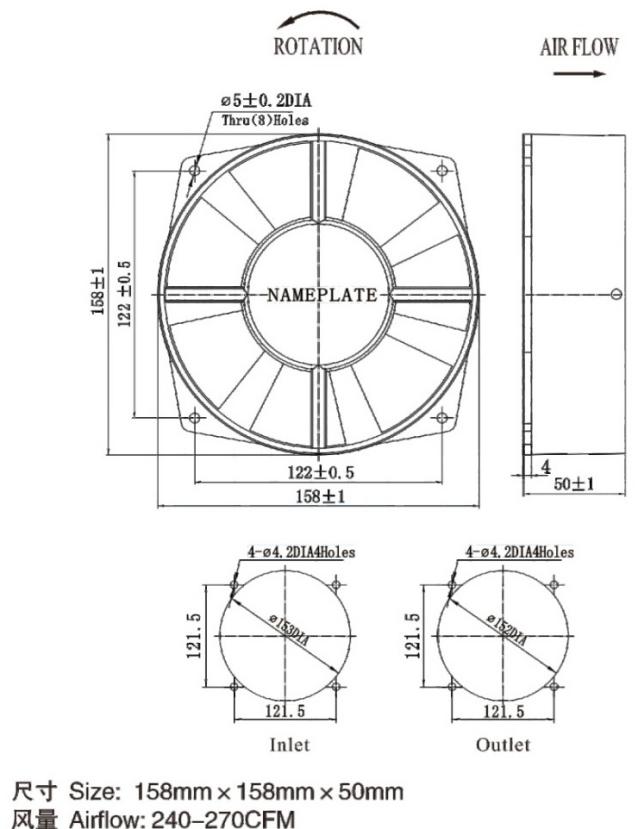

Dimensions and construction

Source dimensional drawing for the Series 26 series.

6
Performance curve

Source performance curve for the Series 26 series.

6

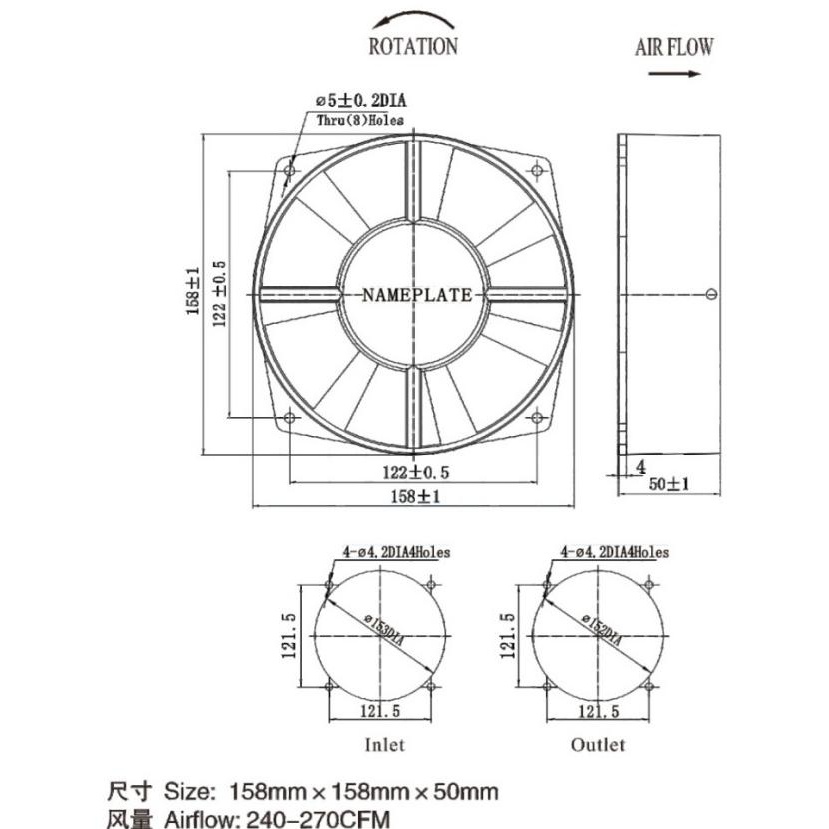

Dimensional drawing

Engineering dimensional drawing for the Series 26 series, showing mounting dimensions and airflow direction.

6
Performance curve

Static pressure vs. airflow performance curve for the Series 26 series under standard operating conditions.

6
Dimensional drawing

Engineering dimensional drawing for the Series 26 series, showing mounting dimensions and airflow direction.

6
Performance curve

Static pressure vs. airflow performance curve for the Series 26 series under standard operating conditions.

6
Dimensional drawing

Engineering dimensional drawing for the Series 26 series, showing mounting dimensions and airflow direction.

6
Performance curve

Static pressure vs. airflow performance curve for the Series 26 series under standard operating conditions.

6
Dimensional drawing

Engineering dimensional drawing for the Series 26 series, showing mounting dimensions and airflow direction.

6
Performance curve

Static pressure vs. airflow performance curve for the Series 26 series under standard operating conditions.

6
Dimensional drawing

Engineering dimensional drawing for the Series 26 series, showing mounting dimensions and airflow direction.

6
Performance curve

Static pressure vs. airflow performance curve for the Series 26 series under standard operating conditions.

6
Dimensional drawing

6
Performance curve

Series 26 technical parameters

Product description

Size 158 mm × 158 mm × 50 mm
Airflow 240-270 CFM
Noise 58-60 dB(A)
Impeller Material PBT UL94-V0 Reinforced Plastic
Frame Aluminum Alloy
Terminals 0.5 mm
Lead Wire AWG#22 UL 1332 (Optional)
Motor Capacitor-Run Induction Motor
Operating Temperature -10℃~+65℃

Model specifications

Model Bearing Voltage VAC Freq. Hz Current A Power W Speed RPM Noise dB(A) Air Flow CFM Phase Capacitor µF/VAC
150FZY8-D Ball 200/240 50/60 0.2/0.23 43/50 2750/3100 58/60 240/270 1 1/500
150FZY9-D Ball 380/420 50/60 0.11/0.14 35/49 2750/3100 58/60 240/270 1 0.33/500
