28080 Explosion-Proof Axial Fan
28080 Explosion-Proof Axial Fan — compact 280 × 280 × 80mm industrial cooling fan.
Source dimensional drawing for the Series 42 series.
Source performance curve for the Series 42 series.

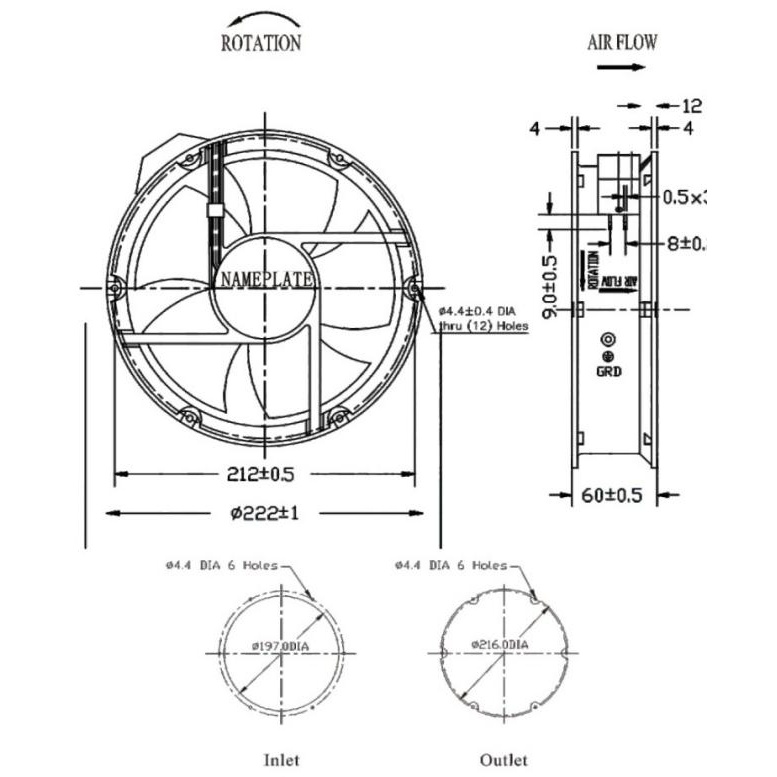

Engineering dimensional drawing for the Series 42 series, showing mounting dimensions and airflow direction.

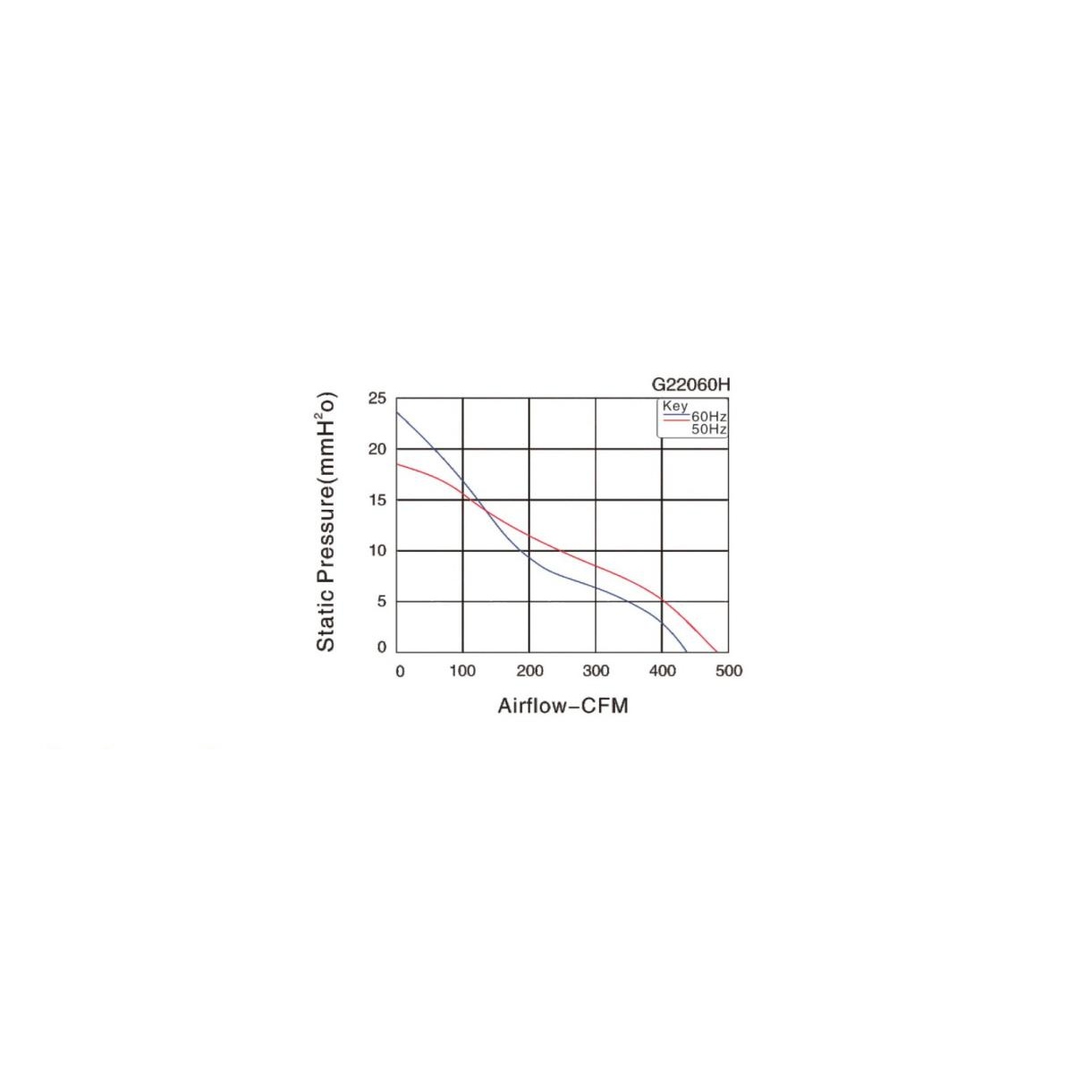

Static pressure vs. airflow performance curve for the Series 42 series under standard operating conditions.

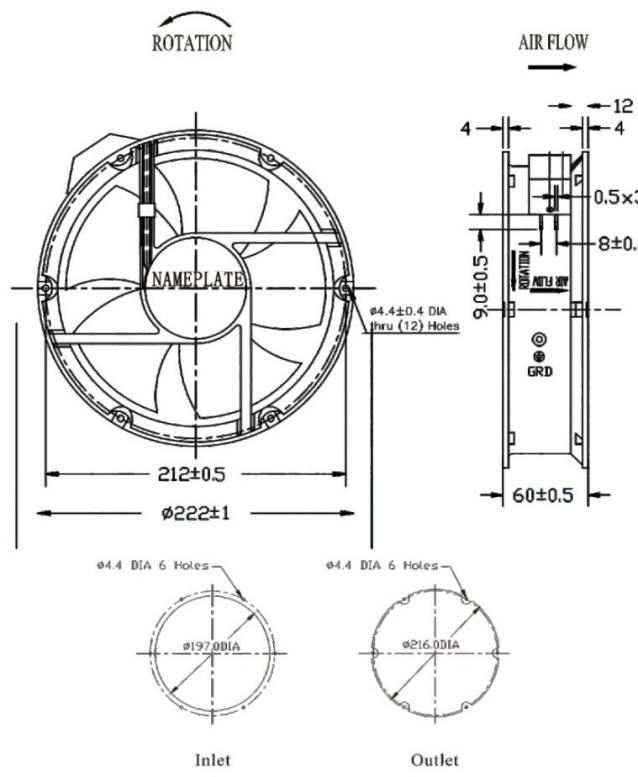

Engineering dimensional drawing for the Series 42 series, showing mounting dimensions and airflow direction.

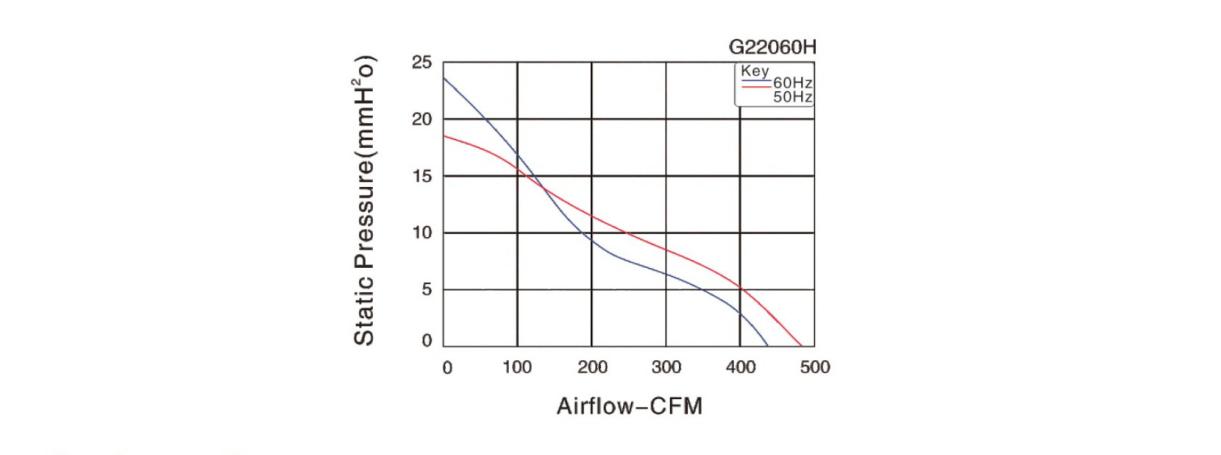

Static pressure vs. airflow performance curve for the Series 42 series under standard operating conditions.
Engineering dimensional drawing for the Series 42 series, showing mounting dimensions and airflow direction.
Static pressure vs. airflow performance curve for the Series 42 series under standard operating conditions.
Engineering dimensional drawing for the Series 42 series, showing mounting dimensions and airflow direction.
Static pressure vs. airflow performance curve for the Series 42 series under standard operating conditions.
Engineering dimensional drawing for the Series 42 series, showing mounting dimensions and airflow direction.
Static pressure vs. airflow performance curve for the Series 42 series under standard operating conditions.
| Size | Ø220mm×60mm |
|---|---|
| Airflow | 477-515CFM |
| Noise | 59-62dB(A) |
| Impeller Material | PBT UL94-V0 Reinforced Plastic |
| Frame | Aluminum Alloy |
| Terminals | 0.5mm |
| Lead Wire | AWG#22UL1015(Optional) |
| Motor | Capacitor-Run Induction Motor |
| Operating Temperature | -10℃~+65℃ |
| Model | Bearing | Voltage VAC | Freq. Hz | Current A | Power W | Speed RPM | Noise dB(A) | Air Flow CFM | Phase | Capacitor µF/VAC |
|---|---|---|---|---|---|---|---|---|---|---|
| G22060HA₁B-W-C | Ball | 100/125 | 50/60 | 0.42/0.46 | 50/60 | 2850/3150 | 59/62 | 477/515 | 1 | 3.3/500 |
| G22060HA₂B-W-C | Ball | 200/240 | 50/60 | 0.25/0.32 | 50/70 | 2850/3150 | 59/62 | 477/515 | 1 | 1.8/500 |
